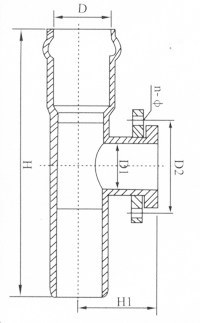

◎ 一承一平一插異三通 |
|
|
公稱外徑 |
D |
D1 |
D2 |
H |
H1 |
n- φ |
|
400 × 315 × 400 |
400 |
315 |
400 |
921 |
318 |
12-22 |
|
400 × 250 × 400 |
400 |
250 |
350 |
845 |
315 |
12-22 |
|
400 × 225 × 400 |
400 |
225 |
295 |
823 |
312 |
8-22 |
|
400 × 200 × 400 |
400 |
200 |
295 |
805 |
295 |
8-22 |
|
400 × 160 × 400 |
400 |
160 |
240 |
751 |
288 |
8-22 |
|
400 × 110 × 400 |
400 |
110 |
180 |
697 |
282 |
8-18 |
|
315 × 250 × 315 |
315 |
2250 |
350 |
789 |
275 |
12-22 |
|
315 × 225 × 315 |
315 |
225 |
295 |
767 |
272 |
8-22 |
|
315 × 200 × 315 |
315 |
200 |
295 |
749 |
251 |
8-22 |
|
315 × 160 × 315 |
315 |
160 |
240 |
695 |
246 |
8-22 |
|
315 × 110 × 315 |
315 |
110 |
180 |
641 |
240 |
8-18 |
|
250 × 225 × 250 |
250 |
225 |
295 |
741 |
243 |
8-22 |
|
250 × 200 × 250 |
250 |
200 |
295 |
723 |
218 |
8-22 |
|
250 × 160 × 250 |
250 |
160 |
240 |
669 |
213 |
8-22 |
|
250 × 110 × 250 |
250 |
110 |
180 |
615 |
207 |
8-18 |
|
225 × 200 × 225 |
225 |
200 |
295 |
704 |
206 |
8-22 |
|
225 × 160 × 225 |
225 |
160 |
240 |
650 |
201 |
8-22 |
|
225 × 110 × 225 |
225 |
110 |
180 |
596 |
195 |
8-18 |
|
200 × 160 × 200 |
200 |
160 |
240 |
637 |
188 |
8-22 |
|
200 × 110 × 200 |
200 |
110 |
180 |
591 |
182 |
8-18 |
|
200 × 90 × 200 |
200 |
90 |
160 |
586 |
177 |
8-18 |
|
200 × 75 × 200 |
200 |
75 |
145 |
570 |
176 |
4-18 |
|
200 × 63 × 200 |
200 |
63 |
125 |
557 |
173 |
4-18 |
|
160 × 110 × 160 |
160 |
110 |
180 |
537 |
167 |
8-18 |
|
160 × 90 × 160 |
160 |
90 |
160 |
517 |
157 |
8-18 |
|
160 × 75 × 160 |
160 |
75 |
145 |
501 |
156 |
4-18 |
|
160 × 63 × 160 |
160 |
63 |
125 |
488 |
153 |
4-18 |
|
110 × 90 × 110 |
110 |
90 |
160 |
480 |
131 |
8-18 |
|
110 × 75 × 110 |
110 |
75 |
145 |
464 |
130 |
4-18 |
|
110 × 63 × 110 |
110 |
63 |
125 |
453 |
127 |
4-18 | |
|
|
|
